SPECIFICATIONS
Application: Charger Controller,Voltage Controller,Lighting Controller,Solar Working Station
Brand Name: NONE
Certification: CE
High-concerned chemical: None
Is Smart Device: No
Maximum Current: 40A
Model Number: AN-MSC
Origin: Mainland China
is_customized: Yes

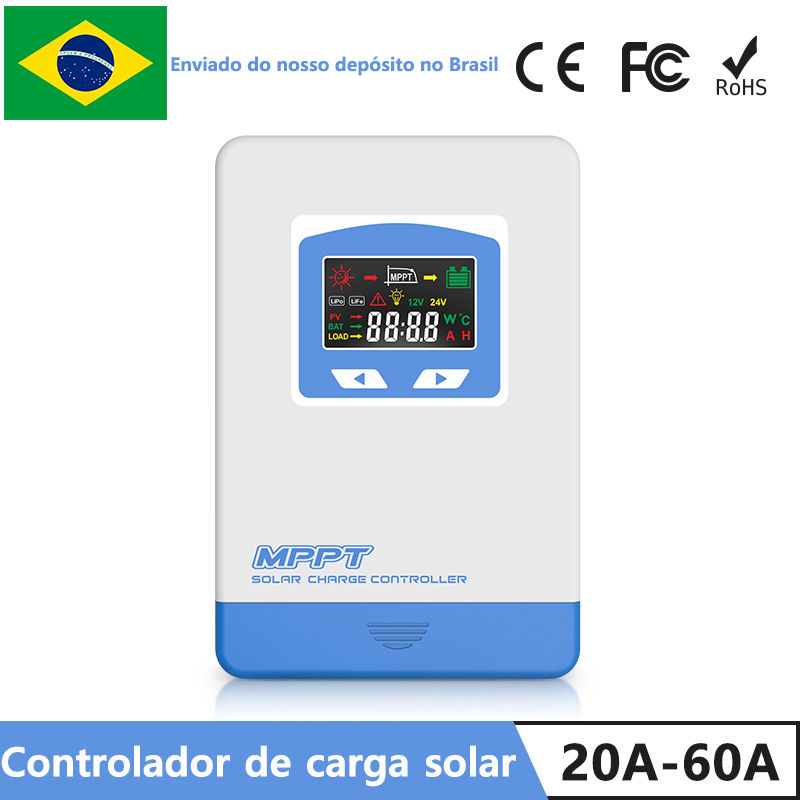

MPPT Solar Charger Controller 40A 30A 20A 12V 24V Solar Panel Regulator LCD Display Various Load Control Modes Support
The Solar charge controller is a multi-level maximum power point tracking (MPPT) photovoltaic battery charge controller with its own technology. Compared with the PWM controller,the MPPT can improve the control accuracy and the output power of the solar panel can be increased by 5%-30%.
Model: | AN-MSC-20A | AN-MSC-30A | AN-MSC-40A | AN-MSC-60A |
Rated Charge Current: | 20A | 30A | 40A | 60A |
Max Open Voltage of Solar Panel: | 60V | 75V | 100V | 150V |
Rated Voltage(Auto): | 12V/24V |
Maximum Input Power |
12V： | 260W | 390W | 520W | 780W |
24V: | 520W | 780W | 1040W | 1560W |
System Rated Voltage: | 12V/24V Auto Recognized |
Battery Voltage Range: | 8V-32V |
Output |
Rated Discharge Current: | 20A | 30A | 30A | 30A |
Static Loss: | ≤50mA |
HVD: | Lead acid battery 16V |
Light Control Voltage: | 5V/10V |
Working humidity: | ≤90%,No condensation |
Protection Class: | IP30 |
Grounded Type: | Positive Grounded |
Aperture for installation: | Φ5 |
